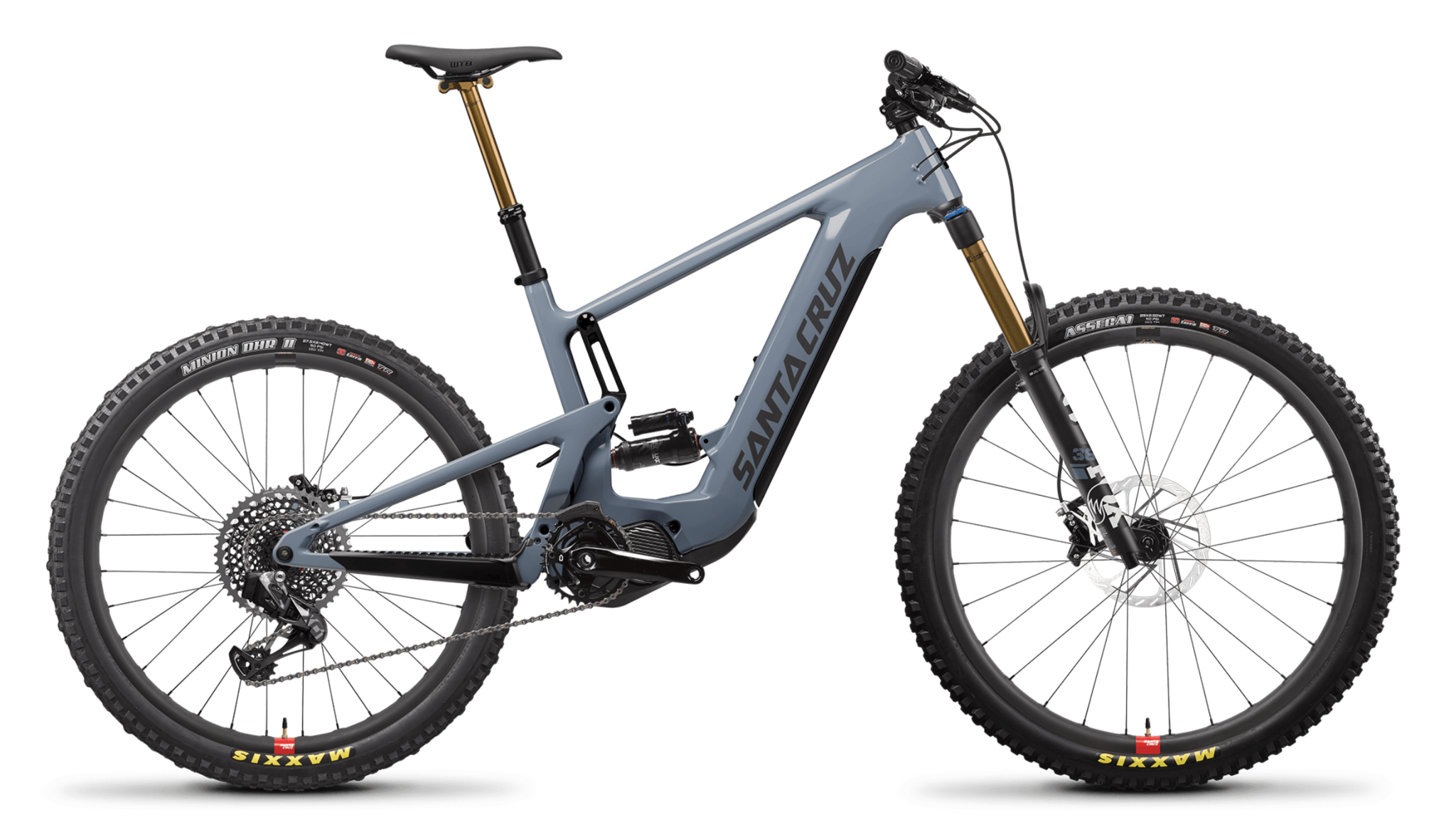

2022 Santa Cruz Heckler MX X01 AXS Reserve

C$17,399.00 C$11,584.00
IN STOCK
SKU: 58-22250-160-3-758-762602-11

* To check in store availability:

Available in store

Close
Select variant below then view stock  here

Add to cart

Danny won't stop talking about his new Heckler

Danny MacAskill just doesn't stop talking about ebikes. He's infatuated with them. In fact, the only time he's not chewing someone's ear off about how good they are is when he's riding them. And when he's riding an e-bike, he rides and rides and rides. Which is partly why we've made the newest Heckler able to go further, higher, faster, and be funner.

Available with mixed MX wheels or as a dual 29er bike, Heckler features a ride-tuned geometry that makes things fun whether going uphill, downhill...or even just flat and fast. Anchoring it all is 150mm of Santa Cruz's legendary Virtual Pivot Point (VPP) suspension that's been paired with a 160mm-travel fork, and tuned precisely for e-bike riding. With slightly less anti-squat to give it glue-like traction on the climbs and poppy maneuverability on the way back down, Heckler smashes the sweet spot for taming big trails on big days.

About those big days...the latest generation of the Heckler comes with a long-running 720 watt-hour interchangeable battery that can be swapped in seconds with just a 4mm allen key. This lets riders expand their own trail map, giving access to previously unreachable trails, unlocking lesser-used trails, and cramming more riding into less time. And when you're riding that much, durability is critical, which is why Santa Cruz sweats the carbon layup and frame design, then backs it up with a lifetime warranty on the frame, bearings, and Reserve carbon wheels

- 150mm VPP travel
- Mixed & 29-inch wheels
- 720wh battery

Specs

Frame Carbon CC MX 150mm Travel VPP™ (Size Small is 27.5”)
Fork FOX 36 Float Factory, 160mm
Rear Shock RockShox Super Deluxe Ultimate
Rims Reserve 30 29” Carbon (F), Reserve DH 27.5” Carbon (R) (Size Small is 27.5” F/R)
Hubs Front: Industry Nine 1/1, 110x15, 6 Bolt, 28h
Rear: Industry Nine 1/1, 148x12, XD, 6 Bolt, 32h
Spokes Sapim D-Light
Tires Front: Maxxis Assegai 29"x2.5", 3C, MaxxGrip, EXO+, TR (Size Small is 27.5”)
Rear: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+, TR
Crankset Shimano EM900 HollowTech Crank Arms 165mm
Shifters SRAM GX AXS Controller
Front Derailleur E.13 E-Spec+ AL
Rear Derailleur SRAM X01 Eagle AXS, 12spd
Cassette/Freewheel SRAM XG1295 Eagle, 12spd, 10-50t
Chain SRAM X01 Eagle, 12spd
Brakes SRAM Code RSC
Rotors SRAM HS2 Rotor 200mm
Handlebars Santa Cruz e35 Carbon Bar, 800mm, 35mm Rise
Tape/Grips Santa Cruz House Grips
Stem Burgtec Enduro MK3
Headset Cane Creek 40 IS Integrated Headset
Seatpost FOX Transfer Factory Dropper, 31.6
Saddle WTB Silverado Medium Stainless Fusion Saddle or WTB Volt
Motor Shimano Drive Unit DU-EP800
Battery 720Wh Integrated, Removable Battery
Charger Smart-Plus 4A Charger
Geometry Chart:
Wheel Size 27.5 MX MX MX MX
Size Small (Low/Hi) Medium (Low/Hi) Large (Low/Hi) X-Large (Low/Hi) XX-Large (Low/Hi)
Reach 427 / 430mm 452 / 455mm 472 / 475mm 492 / 495mm 517 / 520mm
Stack 609 / 607mm 618 / 616mm 632 / 629mm 650 / 648mm 668 / 666mm
Head Tube Angle 64.5 / 64.8° 64.5 / 64.8° 64.5 / 64.8° 64.5 / 64.8° 64.5 / 64.8°
Seat Tube Length 390 / 390mm 405 / 405mm 430 / 430mm 460 / 460mm 500 / 500mm
Front Center 761 / 761mm 781 / 781mm 807 / 807mm 836 / 836mm 869 / 869mm
BB Height 342 / 346mm 342 / 346mm 342 / 346mm 342 / 346mm 342 / 346mm
BB Drop 12 / 8mm Rear: 12 / 8mm Front: 30 / 26mm Rear: 12 / 8mm Front: 30 / 26mm Rear: 12 / 8mm Front: 30 / 26mm Rear: 12 / 8mm Front: 30 / 26mm
Wheelbase 1207 / 1206mm 1227 / 1226mm 1253 / 1252mm 1282 / 1281mm 1315 / 1314mm
Chainstay Length 446 / 445mm 446 / 445mm 446 / 445mm 446 / 445mm 446 / 445mm
Head Tube Length 130 / 130mm 100 / 100mm 115 / 115mm 135 / 135mm 155 / 155mm
Top Tube Length 572 / 571mm 600 / 599mm 625 / 624mm 646 / 645mm 675 / 674mm
Seat Tube Angle 76.7 / 76.9° 76.6 / 76.8° 76.4 / 76.7° 76.7 / 77° 76.8 / 77°
Standover 716 / 720mm 741 / 745mm 740 / 743mm 737 / 741mm 738 / 741mm
