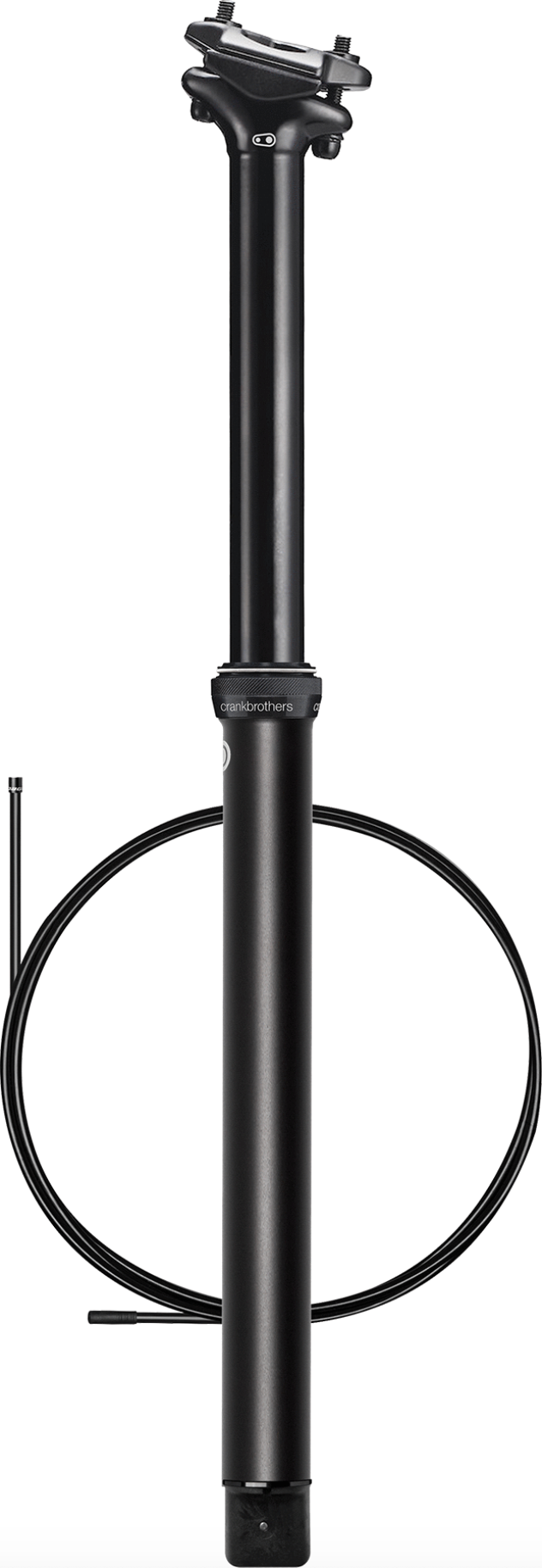

Crank Brothers Highline XC / Gravel Dropper 27.2mm
Proprietary self contained IFP hydraulic cartridge (oil and gas are separated)developed by CB for extremely smooth actuation.
| * To check in store availability: |
| Select variant below then view stock | here |
HIGHLINE XC / GRAVEL
- Proprietary self contained IFP hydraulic cartridge (oil and gas are separated)developed by CB for extremely smooth actuation
- 60mm long / 80mm / 100mm / 125mm of infinite travel adjustment
- Diameter: 27.2
- Insertion length: 264mm (bottom of collar to bottom of actuator
- Weight: 369g / 410g / 434g / 459g / 467g
- Industry leading 4 year warranty
- Remote sold separately HERE
Details
- 27.2mm seatpost diameter to fit most XC and gravel bikes
- Jagwire® cable and housing
- Self-contained IFP hydraulic cartridge
- Internal routing
- Quick connect mechanism for ease of cable installation
- Linear actuator for quick return speed
- 2-bolt standard head
Specs
| material | 7075-T6 aluminum |
| max extended length | 300mm |
| max insertion length | 264mm |
| min. insertion length | 100mm |
| min. stack height | 60mm |
| seat post diameter | 27.2mm |
| setback | 0 |
| total post length | 427mm |
| travel adjustment | 100mm |
| warranty | 4 years |
| weight | 459g |
